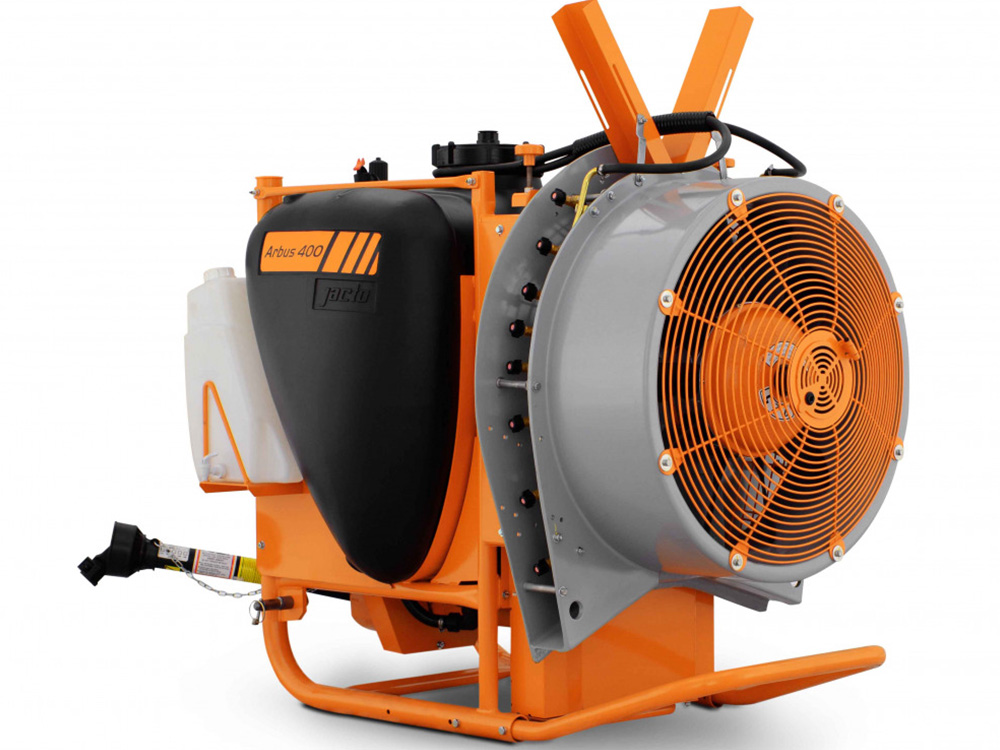

Arbus 400

Ideal for small and medium farms.

Simple and Versatile

Arbus 400 is a versatile product that meets the best application efficiency in different crops and conducting plantations, helping the farmer to protect his crops.

Model that fills needs

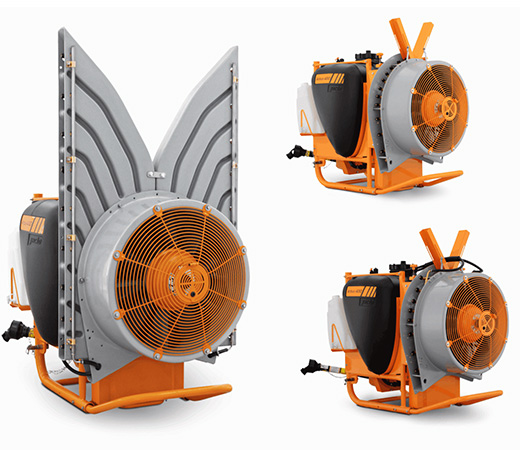

The distribution of air, together with the possibility of opening individual nozzle holders, makes the Arbus 400 a versatile product, capable of serving different types of crops. Configurable in three ways, we have the Arbus 400 725, with excellent coverage and lower power consumption, Arbus 400 850 with excellent penetration for high leaf density, and the Arbus 400 Tower, minimizes drift factors and provides excellent coverage.

Spraying Agility

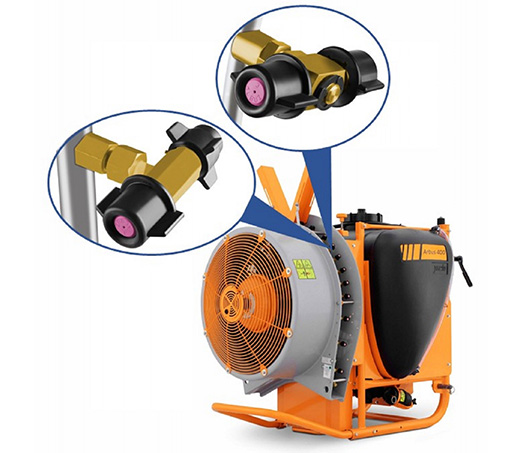

Configured with nozzle holders with shut-off valve or bijet, it allows the configuration and quick change of the nozzles with a simple touch which facilitates the use in new calibrations, improving the application quality and increasing productivity.
Technical Specifications:
tank
"capacity 400l"
material polyethylene


fan
diameter 725mm
air speed 146 km/h


nozzles
atomizer model 1 jac 80-025
total 16 nozzles


pto shaft
standard 6 spline



clean water tank
tank capacity 15l
material polyethylene


spray pump
jp-75
type piston
maximum flow rate 75 l / min

regulator type
cd var 2v lever


















Work speed
Spraying 2 to 6 km/h



Available options
Filler unit


















Tank
Tank Capacity 400 L
Material Polyethylene
Chemical solution agitation Hydraulic

Clean water tank
Tank Capacity 12 L
Material Polyethylene

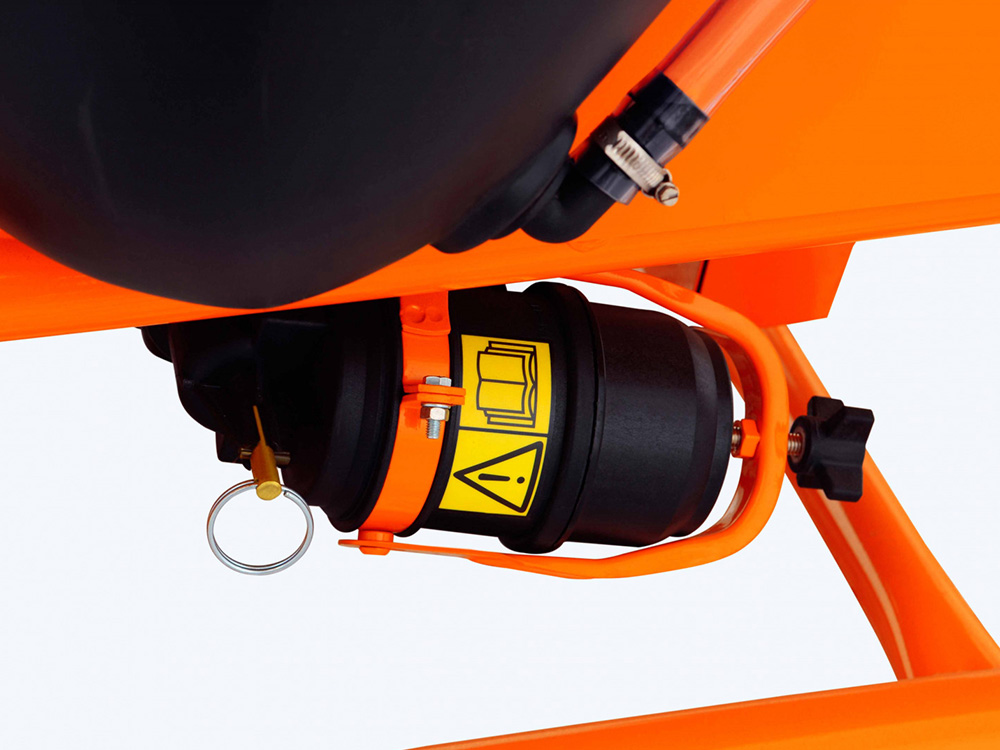

Main filter
Model FVS-100
Filtering capacity 100 L/min.
Filter mesh 60 mesh

Spray pump
Model JP-75
Type Piston
Maximum flow rate 75 L/min
Power consumption 4 cv
Spray control
Model VAR
Number of ways 2-ways
Actuation Manual by lever
Maximum working pressure 300 psi
Fan
Diameter 850 mm
Air speed 126 km/h
Air volume 14,3 m³/s
Power consumption 17,7 cv
Dimensions
Length 2,04 m
Width 1,23 m
Height 1,74 m

Weight
Empty machine 360 kg



Work speed
Spraying 2 to 6 km/h



Available options
Filler unit




























Tank
Tank Capacity 400 L
Material Polyethylene
Chemical solution agitation Hydraulic

Clean water tank
Tank Capacity 12 L
Material Polyethylene


Main filter
Model FVS-100
Filtering capacity 100 L/min
Filter mesh 60 mesh

Spray pump
Model JP-75
Type Piston
Maximum flow rate 75 L/min
Power consumption 4 cv
Spray control
Model VAR
Number of ways 2-ways
Actuation Manual by lever
Maximum working pressure 300 psi
Fan
Diameter 725 mm
Air speed 146 km/h
Air volume 10,2 m³/s
Power consumption 15 cv
Dimensions
Length 1,75 m
Width 1,10 m
Height 2,10 m

Weight
Empty machine 305 kg



Work speed
Spraying 2 to 6 km/h



Available options
Filler unit
