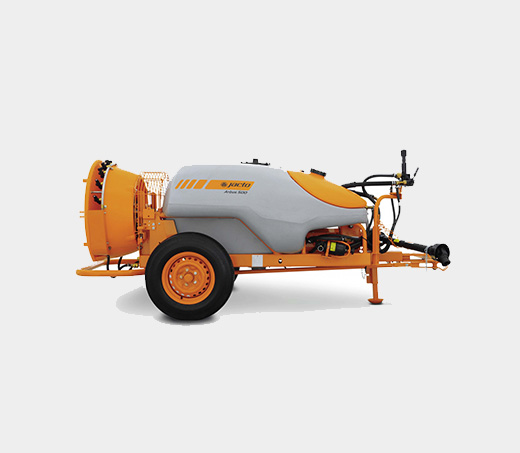

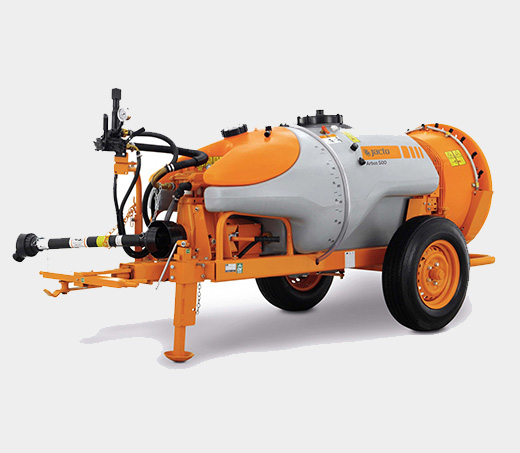

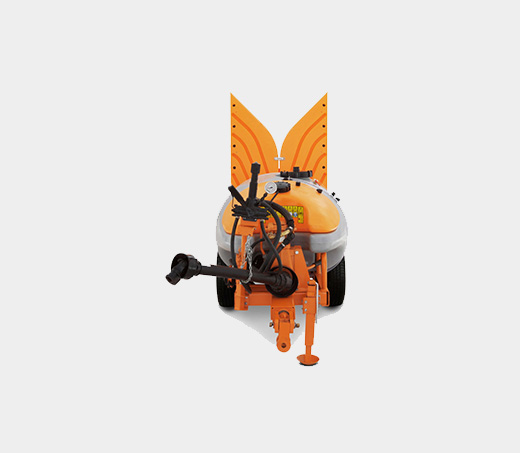

Arbus 500

hello world!
Arbus 500 is a versatile product that meets different crops and needs. It allows maneuvers in narrow places.
Configured with bijet nozzle holders, it allows the configuration and quick change of the nozzles with a simple rotation which facilitates the use in new calibrations, improving the application quality and increasing productivity.
Arbus 500 offers excellent spraying productivity and protects large crop areas in less time. Configurable in many ways, we have the Arbus 500, with excellent coverage and lower power consumption.
Technical Specifications:
tank
capacity 500l
material polyethylene


fan
diameter 550m
air speed 58 km/h


nozzles
atomizer model 1 jac 80-025
atomizer model 2 jac 80-02
total 16 nozzles

pto shaft
standard 6 spline



clean water tank
tank capacity 15l
material polyethylene


spray pump
jp-50
type piston
maximum flow rate 50 l / min

regulator type
cd var 2v lever


















Dimensions
Length 2,83 m
Width 1,25 m
Height 1,17 m

Weight
Empty machine 330 kg



Working speed
Spraying 2 to 6 km/h








Available options
Filler unit
Agrale tractor hitch
